1. Wheelbase: 210mm

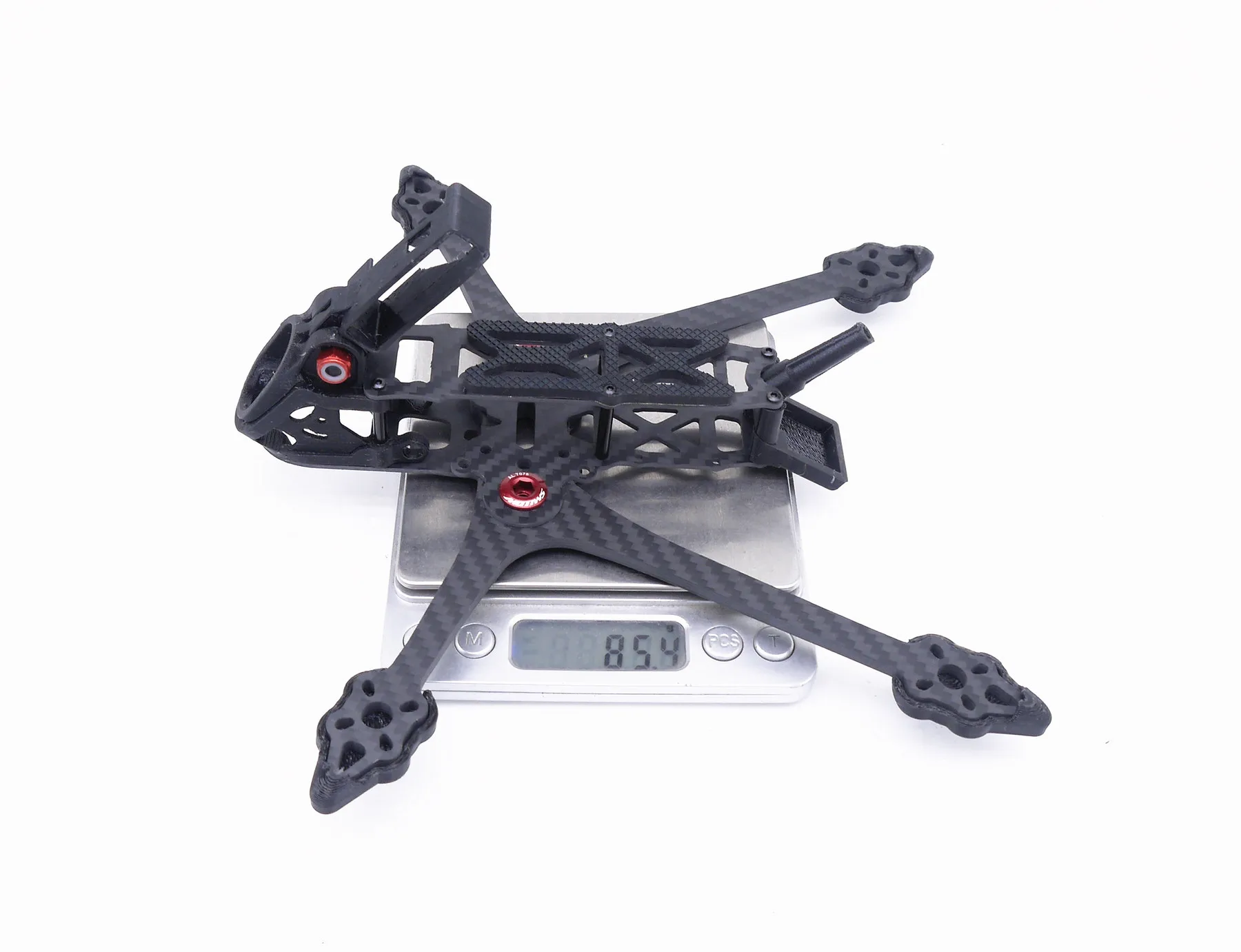

2. Weight: about 85.4G (including prints)

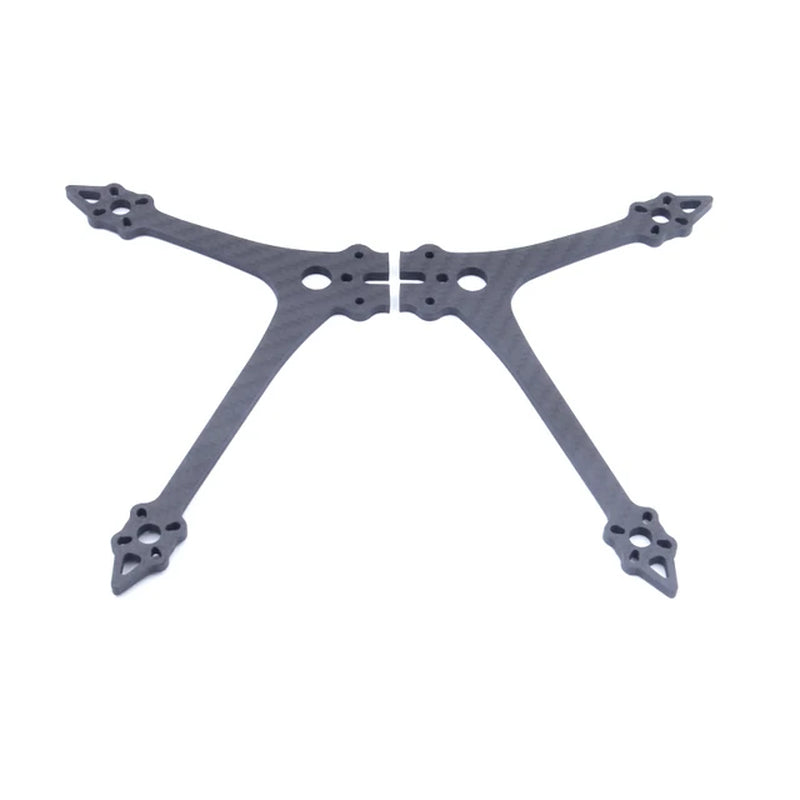

3. Thickness: bottom plate 1.5mm, upper plate 1.5mm, machine arm 4.0mm, protection rod 3.0mm

4. Propeller: 5 inch propeller (limit 5.1 inch propeller)

5. Flight control hole distance: 20*20mm, 25.5*25.5mm (need to install a flight control conversion board), 30.5*30.5mm (need to remove the two aluminum pillars in the middle)

6. The distance between the rear image transmission holes: 20*20mm

7. Camera installation width: 19mm

8. Motor mounting hole position: supports 12mm (m2) and 16mm (m3) hole pitch motors

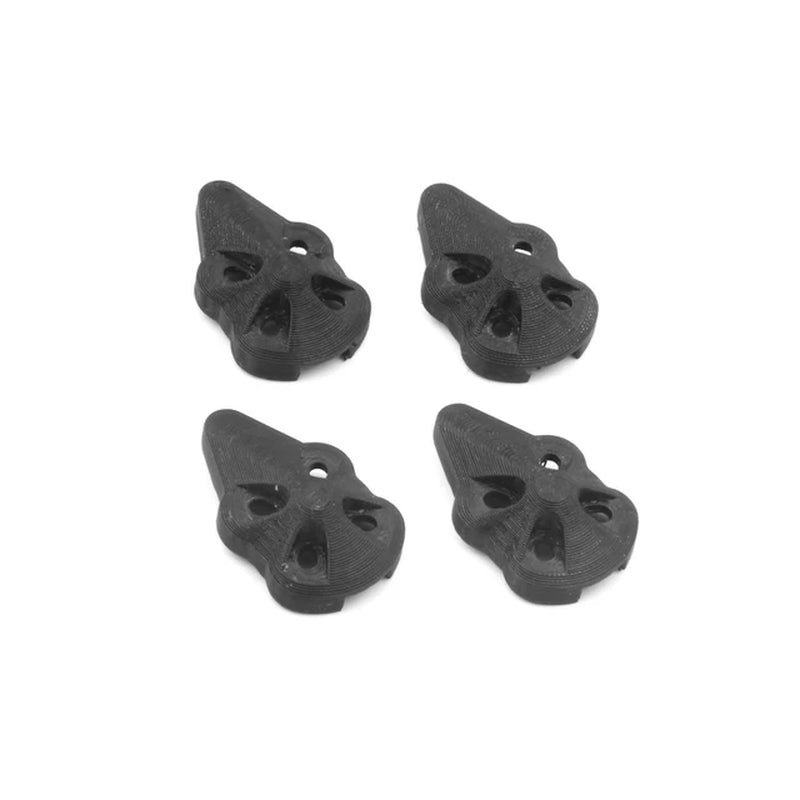

9. Printed material: 3D printing tpu material

10. The color of the print: black TPU

11. Adapt to GPS: BN-180 GPS

12. Adapt to Gopro6/7

13. Adapt to the VISTA sky terminal
